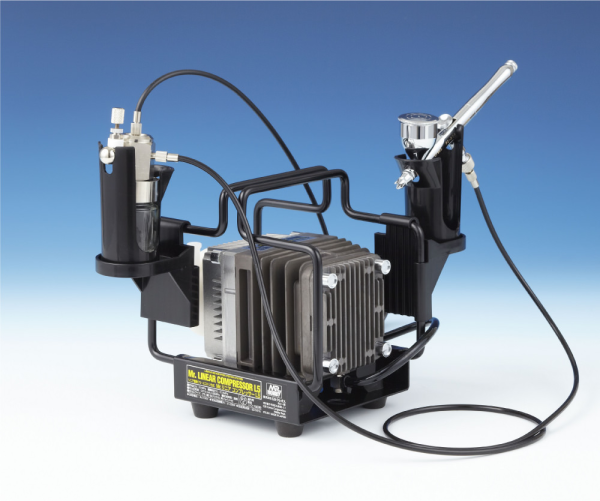

Mr. Linear Compressor L5 / PS-274 Airbrush Set

Experience precision and quiet power with the GSI Creos Mr. Linear Compressor L5 / PS-274 Airbrush Set, a comprehensive system designed for discerning hobbyists and modelers. This set combines the renowned Mr. Linear Compressor L5 with the versatile PS-274 Procon Boy airbrush, offering everything needed to achieve professional-grade finishes right out of the box.

The Mr. Linear Compressor L5 is a standard for model painting, celebrated for its exceptionally quiet operation and high reliability. It employs a linear motor free piston system, directly driving the compression piston by electromagnetic force, which significantly reduces operational noise, allowing for comfortable work even during quiet hours.

The included Mr. Airbrush Procon Boy WA Double Action PS-274 is a Japanese-made workhorse, perfect for a wide range of airbrushing projects. Its double-action, gravity-feed design provides excellent control, while the built-in air valve allows for quick air pressure adjustments directly on the airbrush.

Key Features:

• Quiet operation at approximately 50dB (unloaded), ideal for home use
• High reliability and stable air output for consistent paint application
• Mr. Air Regulator Mk.IV with pressure gauge for precise air pressure control, featuring decompression, drainage, and branch functions
• Versatile 0.3mm nozzle on the PS-274 airbrush, suitable for fine detailing and general coverage
• Double-action airbrush with needle travel adjustment for enhanced paint flow control
• Gravity feed airbrush design with a 10 ml cup for efficient paint flow and reduced clogging
• Equipped with two air outlets on the compressor, allowing connection of multiple airbrushes (though this set includes one)
• Standard 1/8" connector on the airbrush and compressor for broad compatibility with air hoses

What's Included:

• Mr. Linear Compressor L5
• Mr. Air Regulator Mk.IV
• Mr. Airbrush Procon Boy WA Double Action PS-274 (0.3mm nozzle)
• Air hose
• Direct-attached airbrush holder
• Joints for PS (thin) and 1/8 (S) standard hoses

Specifications:

Mr. Linear Compressor L5:

• Rated Pressure: 0.1MPa
• Maximum Pressure: 0.12MPa
• Air Discharge Volume: 5.27 liters/min at 0.05MPa
• Rated Time: Continuous
• Operating Noise: 50dB (unloaded)
• Rated Voltage: AC100V
• Rated Power Consumption: 31/29W (50/60Hz)
• Body Dimensions: Length 160mm x Width 120mm x Height 160mm
• Body Weight: 2.4kg
• Outlet Size: PS (thin) and 1/8 (S) joints included

Mr. Airbrush Procon Boy WA Double Action PS-274:

• Nozzle Diameter: 0.3mm
• Feed Type: Gravity
• Cup Capacity: 10 ml
